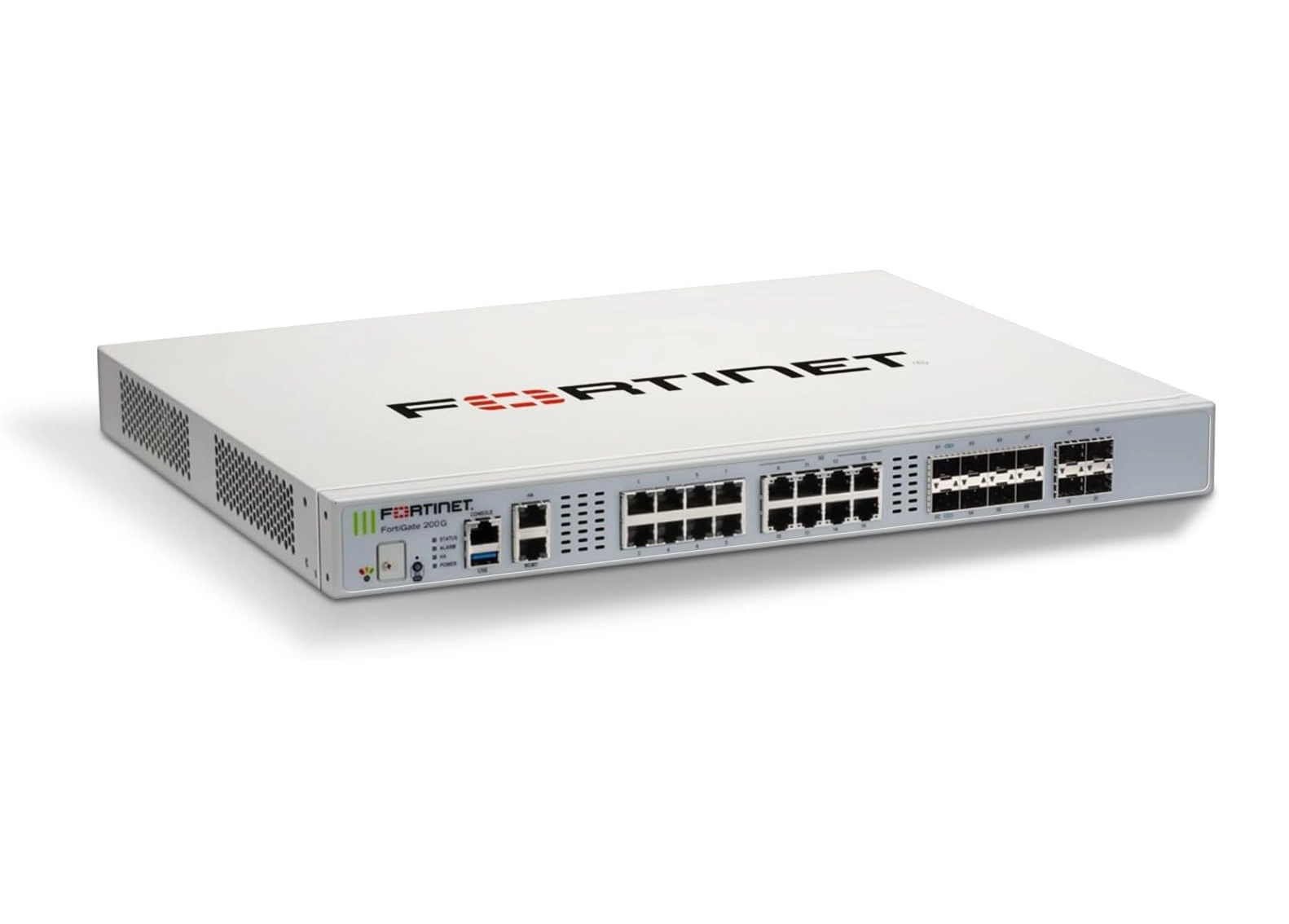

Fortinet FortiGate 200G Firewall Güvenlik Duvarı UTM 1 Yıl Lisans
FortiGate 120G, orta ve büyük işletmelerin gelişmiş güvenlik ihtiyaçlarını karşılamak üzere tasarlanmış, yüksek performanslı yeni nesil bir firewall çözümüdür. Fortinet’in güçlü FortiOS işletim sistemi ile çalışan cihaz; IPS, uygulama kontrolü, antivirüs, web filtreleme ve gelişmiş tehdit koruma servislerini tek bir platformda sunar.
🛡️ FortiGate 200G – Yüksek Performans ve Kurumsal Güvenlik Bir Arada
FortiGate 200G, büyük ölçekli şirketler ve veri merkezleri için özel olarak tasarlanmış, performans odaklı bir güvenlik duvarı cihazıdır. Fortinet’in güçlü işlemcisi (SPU) sayesinde düşük gecikmeyle yüksek güvenlik sağlar.
FortiOS yazılımı ile birlikte IPS, SSL inspection, uygulama kontrolü, AV gibi kurumsal UTM servislerini destekler. Kurumsal seviyede loglama, merkezi yönetim ve FortiAnalyzer ile entegre çalışır.
| Specifications | FortiGate 200G | FortiGate 201G |
|---|---|---|
| Interfaces and Modules | ||
| GE RJ45 Ports | 8 | |
| GE RJ45 Management / HA | 1 / 1 | |
| 5/2.5/GE RJ45 Ports | 8 | |
| GE SFP Slots | 4 | |
| 10/GE SFP/+ FortiLink Slots (default) | 8 | |
| USB Port | 1 | |
| Console Port | 1 | |
| Onboard Storage | 0 | 1x 480 GB SSD |
| Trusted Platform Module (TPM) | ||
| Bluetooth Low Energy (BLE) | ||
| Included Transceivers | 0 | |
| Signed firmware hardware switch | — | |

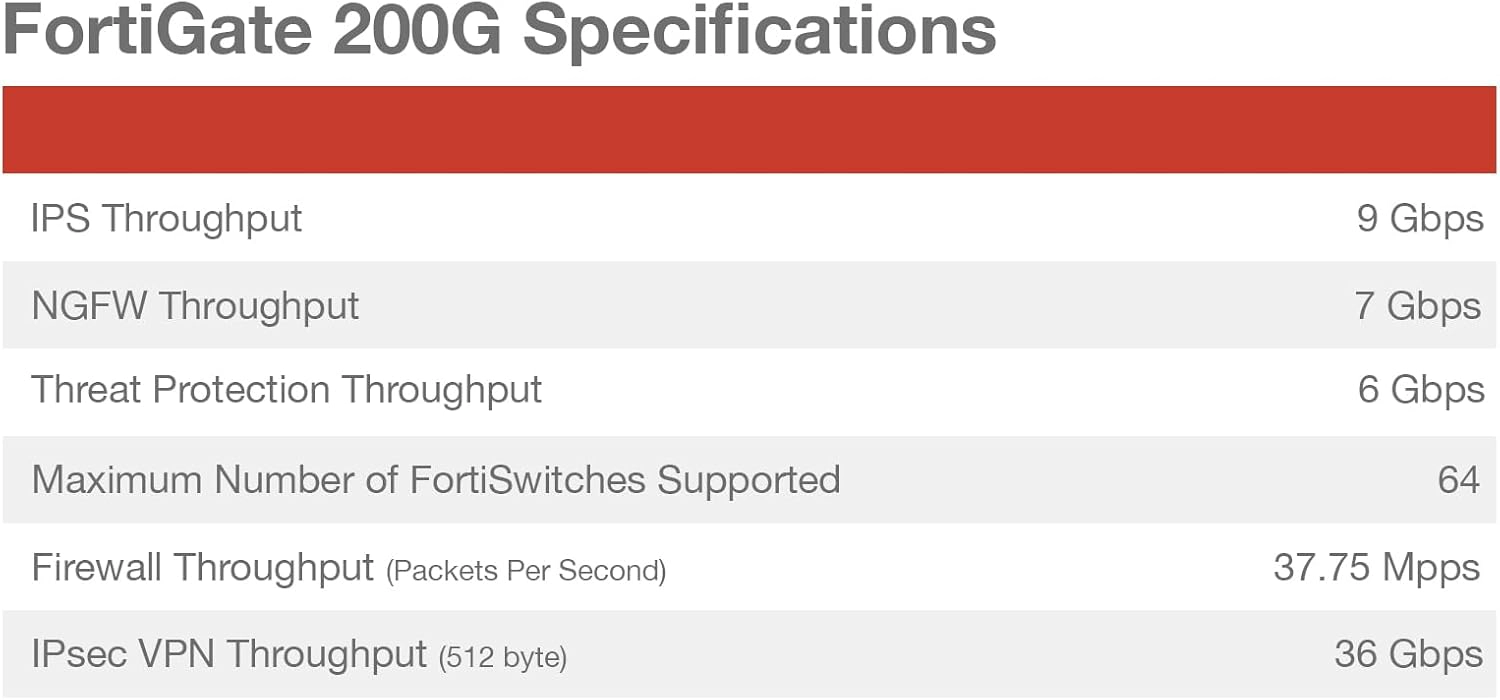

| System Performance — Enterprise Traffic Mix | ||
| IPS Throughput2 | 9 Gbps | |
| NGFW Throughput2,4 | 7 Gbps | |
| Threat Protection Throughput2,5 | 6 Gbps | |
| System Performance and Capacity | ||
| IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) |
39 / 39 / 26.5 Gbps | |
| IPv6 Firewall Throughput (1518 / 512 / 64 byte, UDP) |
39 / 39 / 26.5 Gbps | |
| Firewall Latency (64 byte, UDP) | 4.36 μs | |
| Firewall Throughput (Packet per Second) | 39.75 Mpps | |
| Concurrent Sessions (TCP) | 11 Million | |
| New Sessions/Second (TCP) | 400,000 | |
| Firewall Policies | 10,000 | |
| IPsec VPN Throughput (512 byte)1 | 36 Gbps | |
| Gateway-to-Gateway IPsec VPN Tunnels | 2000 | |
| Client-to-Gateway IPsec VPN Tunnels | 16,000 | |
| SSL-VPN Throughput6 | 3 Gbps | |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) |
500 | |
| SSL Inspection Throughput (IPS, avg. HTTPS) 3 |
7 Gbps | |
| SSL Inspection CPS (IPS, avg. HTTPS)3 | 7100 | |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) 3 |
900,000 | |
| Application Control Throughput (HTTP 64K) 2 |
27.8 Gbps | |
| CAPWAP Throughput (HTTP 64K) | 37.5 Gbps | |
| Virtual Domains (Default / Maximum) | 10 / 10 | |
| Maximum Number of FortiSwitches Supported | 64 | |
| Maximum Number of FortiAPs (Total / Tunnel) |
256 / 128 | |
| Maximum Number of FortiTokens | 5000 | |
| High Availability Configurations | Active-Active, Active-Passive, Clustering | |
| Dimensions and Power | ||
| Height x Width x Length (inches) | 1.75 x 17.0 x 15.0 | |
| Height x Width x Length (mm) | 44.45 x 432 x 380 | |
| Weight | 14.11 lbs (6.4 kg) | 14.33 lbs (6.5 kg) |
| Form Factor (supports EIA/non-EIA standards) |
Rack Mount, 1 RU | |
| AC Power Consumption (Average / Maximum) |
145 W / 175 W | 145 W / 176 W |
| AC Power Input | 100–240V AC, 50/60Hz | |
| AC Current (Maximum) | 2A @100VAC, 1.2A @240VAC | |
| Heat Dissipation | 597.12 BTU/h | 600.54 BTU/h |
| Power Supply Efficiency Rating | 80Plus Compliant | |
| Redundant Power Supplies | (Default dual non-swappable AC PSU for 1+1 Redundancy) |
|
| Operating Environment and Certifications | ||
| Operating Temperature | 32°F to 104°F (0°C to 40°C) | |
| Storage Temperature | -31°F to 158°F (-35°C to 70°C) | |
| Humidity | 5% to 90% non-condensing | |
| Noise Level | LPA 48 dBA / LWA 55 dBA | |
| Forced Airflow | Side and Front to Back | |
| Operating Altitude | Up to 10 000 ft (3048 m) | |
| Compliance | FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB | |
| Certification | USGv6/IPv6 | |
📄 Datasheet Linki:
🔗 https://www.fortinet.com/content/dam/fortinet/assets/data-sheets/pdf/fortigate-200g-series.pdf
